Female Headers (Socket Headers): Versatile and Reliable PCB Board-to-Board Interconnects

JIATEL’s Female Headers, commonly referred to as Socket Headers, are the essential mating components for Male Pin Headers, designed to establish flexible, pluggable, and reliable interconnections between Printed Circuit Boards (PCBs). Our product series is engineered to meet the stringent demands for reliability and versatility found across industrial, modular, and high-density electronic applications.

The Female Header consists of a durable plastic housing and precision sockets, which ensure a tight and stable electrical connection with the male pins. They represent the ideal choice for achieving efficient and cost-effective board-to-board interconnects.

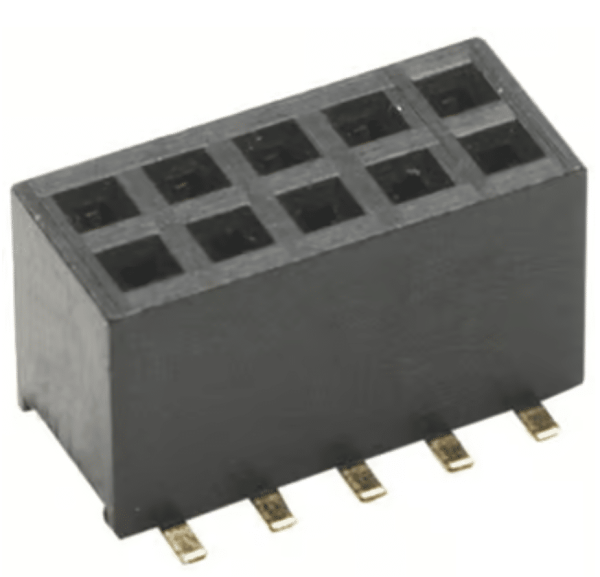

SMT female socket header for PCB board-to-board connection

1. Core Advantages: High Compatibility and Broad Application

Compared to simple pin headers, Female Headers offer distinct design flexibility and enhanced usability, making them indispensable components in modern electronics:

Core Advantage Customer Value Proposition (B2B Procurement Focus)
Multifunctional Plugging Capability High Versatility. They not only mate directly with pin headers but also serve as Jumper Wire Recipients, significantly simplifying system configuration, field debugging, and prototyping.
High-Reliability Socket Structure Low Contact Resistance. The precision-engineered socket ensures excellent, stable contact, which is critical for signal integrity, especially in high-speed or low-power applications.
High Density & Compact Layouts Space Optimization. Available in 1 to 4 row configurations with flexible pin counts, supporting high-density stacking and compact PCB layouts, making them ideal for miniaturized devices.
Cost-Effectiveness Efficient & Economical. Offers a proven, mature, and cost-friendly solution for establishing reliable, removable PCB interconnections.

2. Product Classification and Key Specifications

We classify our Female Headers to address a variety of mounting, pitch, and application requirements, ensuring optimal design flexibility.

Classification Available Pitches Row Config Typical Application
Standard Headers 1.27, 2.0, 2.54mm 1 – 4 Rows Industrial controls, test equipment, power boards.
SMT Female Headers 0.8, 1.0, 1.27, 2.0mm 1 – 2 Rows Consumer electronics, high-density networking.
Stacking Headers Custom Heights 1 – 2 Rows Medical devices, modular server hardware.
Right-Angle Type 2.0, 2.54mm 1 – 2 Rows Side-entry connections, space-constrained kits.

3. Female Header vs. Male Pin Header Summary

Feature Female Header (Socket Header) Male Pin Header (Pin Header)
Structure Plastic housing with internal sockets. Plastic housing with exposed metal pins.
Primary Function Receptacle for Male Pins and Jumper Wires. Insertion into Female Sockets.
Pin Length The tail pins are often longer than male connectors to accommodate versatile mounting and jumper wire connections. Standardized pin lengths for optimal PCB insertion or socket mating.

Looking for High-Reliability Precision Sockets?

While standard Female Headers are ideal for general board-to-board connections, certain applications like aerospace or high-end industrial testing require specialized Machined IC Sockets. These machined-pin versions offer superior gas-tight connections and higher mating cycles compared to stamped female headers.

Technical Tip: For mission-critical applications requiring the highest mating cycles and a gas-tight seal, consider our Machined IC Sockets. They offer a more robust alternative to standard stamped female headers for sensitive integrated circuits.

4. Custom Female Header Manufacturer: Customization & Expert Support

As a premier custom female header manufacturer, Jiatel understands that standard components don’t always fit. We specialize in solving clearance issues in complex multi-board stacks by offering:

  • Bespoke Configurations: Custom stack heights, non-standard tail lengths, and special pitches.

  • Premium Plating: Specific plating thickness from gold flash to 30u” to meet environmental needs.

  • Flexible Production: We provide these tailor-made solutions with No High MOQ, ensuring precision and reliability for both prototyping and mass production.

[Contact our engineering team today] for a 24h quote on your custom header requirements.
