Coaxial Connectors: Precision RF & Microwave Solutions for Critical Applications

Jiatel is your reliable direct source and an experienced manufacturer, offering a comprehensive portfolio of Coaxial Connectors. These components are critical for maintaining signal integrity, impedance control, and low VSWR in demanding high-frequency RF and Microwave applications. Our connectors are meticulously engineered to meet the stringent requirements of telecommunications, aerospace, automotive, and industrial test and measurement sectors.

This category page is designed to help you quickly navigate our offerings and find the precise coaxial connector series that matches your frequency, impedance, and mating requirements.

1. Explore Our Coaxial Connector Series by Type: Engineered for Performance

Browse our specialized series, each optimized for specific frequency ranges and application environments. Click on the product series below to view detailed specifications, available configurations, and downloadable datasheets.

Connector Series Key Application Focus Main Features & Jiatel Advantage

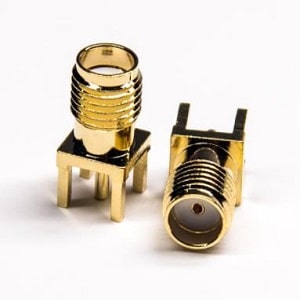

SMA Connectors Microwave / High-frequency RF, Precision Data Transmission, Small-scale Devices. Precision Performance: Threaded coupling, high performance up to 18 GHz (and beyond for custom), miniature size, ensuring excellent signal integrity.
BNC Connectors Video / Broadcast, Test Equipment, Quick-Connect Requirements. Rugged & Versatile: Bayonet coupling for rapid connection, impedance options of 50 Ohm and 75 Ohm, robust and cost-effective.
N-Type Connectors High-Power Base Stations, Harsh Environmental Sealing, Industrial Applications. High Power Handling: Threaded coupling, low loss, superior power handling capability, and exceptional environmental resistance.
TNC Connectors Anti-Vibration Performance, Harsh Environments, Industrial & Military. Enhanced Stability: Threaded version of BNC, offering superior resistance to shock and vibration stability for critical connections.
Micro Miniature Series Space-Constrained Devices (MCX/MMCX), Board-to-Board Internal Connections, GPS. Ultra-Compact Design: Snap-on or threaded mounting options, ultra-compact design, ideal for miniaturized electronics where space is critical.

2. Filter by Key Technical Parameters: Tailored to Your Design

Efficiently find the right coaxial connector by filtering based on your critical design specifications.

Impedance Options

  • [50 Ohm Coaxial Connectors Link]: Optimized for RF, Data, and Wireless Communication applications.

  • [75 Ohm Coaxial Connectors Link]: Specifically designed for Video and Broadcast applications, ensuring precise signal transmission.

Mounting Style Versatility

  • [PCB Mount Connectors Link]: Available with Through-hole and Surface Mount options for seamless board integration.

  • [Cable Mount Connectors Link]: Designed for custom cable assemblies, offering robust and reliable cable termination.

  • [Panel Mount Connectors Link]: Includes Bulkhead and Flange Mount options for secure chassis and enclosure installations.

3. Manufacturer Advantage: Custom Coaxial Solutions & Engineering Support

Unlike standard distributors, Jiatel is a specialized manufacturer with deep engineering expertise.If your high-frequency design demands parameters that standard connectors cannot meet, we offer comprehensive customization services to achieve optimal performance.

Our Customization Capabilities Include:

  • Precision Impedance Matching: We guarantee low VSWR (Voltage Standing Wave Ratio) and optimal return loss, crucial for meeting your specific frequency requirements and maximizing signal integrity.

  • Material and Plating Customization: Materials and plating are optimized for harsh environments (e.g., salt spray, extreme temperatures) and minimizing insertion loss across various frequencies.

  • Custom Cable Assembly Integration: We seamlessly assemble your chosen connector with specific high-performance cable types (e.g., RG-58, LMR Series, custom low-loss cables), providing a complete, tested solution.

Contact our engineering team today to ensure high-performance, custom connectivity for your next RF or Microwave project.
