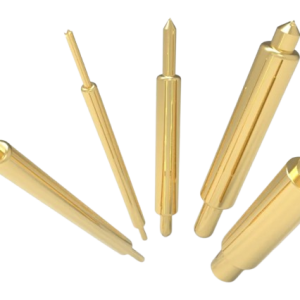

Precision Spring Test Probes for ICT & FCT Environments

We engineer precision Spring Test Probes optimized for automated testing architectures, including In-Circuit Test (ICT) blocks, Functional Test (FCT) fixtures, and Automatic Test Equipment (ATE) frames. Our manufacturing matrix utilizes high-preload internal springs and rigid metallurgy, such as Beryllium Copper (Be-Cu) and Tool Steel plungers. Furthermore, our test data shows exceptionally stable circuit transmission and minimal contact resistance drift across up to 500,000 compression cycles. Consequently, testing facilities rely on our interconnect solutions to maintain absolute alignment without generating costly layout validation delays.

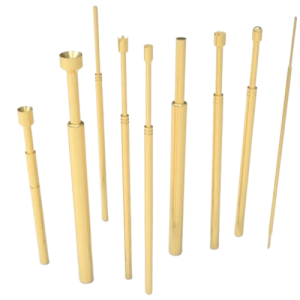

Comprehensive Tip Styles & Mechanical Compatibility

Precision fixture integration requires exact linear stroke precision and standardized micrometer-level centering. Explicitly, Jiatel supplies form-fit mechanical replacements compatible with legacy testing brands. We strictly prohibit the distribution of unverified digital mockups or 3D CAD files. Instead, our process pivots entirely toward rigorous tolerance verification based on official [Technical Datasheets] and verified [2D Footprint Specs] to eliminate pin deflection or layout damage. Our inventory is optimized around multiple hard-wearing tip geometries:

• Pointed & Spear Heads (90°/60°): Explicitly designed to pierce through oxidation and flux residues on standard solder joints.
• Serrated & Crown Configurations: Optimized for multi-point landing on component pins and terminal leads to prevent probe slipping.
• Cup & Spherical Radius Styles: Engineered with a smooth contact profile to verify clean gold pads without leaving mechanical scores.

Advanced NPI Deployment and Material Integrity

To guarantee flawless penetration and continuous power loads, we deploy our Senior NPI Engineering Team to audit each test fixture specification. Therefore, we eliminate false open faults through strict structural control and customizable thick gold plating over nickel underlayers. Sub-millimeter mechanical tolerances across standard ICT, FCT, and high-current test probes are fully secured before batch manufacturing. To initiate a tip style or spring force evaluation, select the engineering queue below.

Technical Specifications and Performance Matrix

Request Engineering Drawings & Custom Technical Support

For specialized centerlines or cross-reference auditing, procurement managers can seamlessly connect with our technical desk. We enforce a strict 12-hour fast response SLA, guaranteeing the delivery of fully matched, production-ready PDF drawings. To secure your position in our technical validation pipeline and retrieve exact technical layouts from our data vault: Request Engineering Support

Disclaimer: Our mechanical footprint-matched test probes share identical mounting geometry and linear stroke parameters with reference legacy fixture layouts. Internal spring force, tip style variations, and plating thickness can be tailored per your testing environment requirements, and may differ from original OEM specifications.
