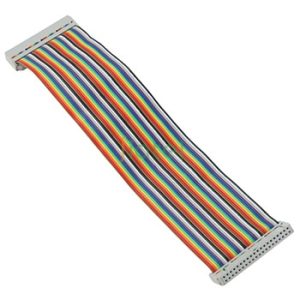

Custom IDC Flat Ribbon Cable Assemblies for High-Density Interconnects

Jiatel is one of the leading manufacturers of PCB connectors and cable assemblies in China. Our Custom IDC Flat Ribbon Cable Assemblies are the ideal solution for modern electronic designs requiring high-density, rapid termination, and minimal physical profile. We provide the versatility and reliability needed to maximize board space without compromising signal integrity.

Technical Specifications and Custom Configurations

Our comprehensive offerings cover the industry’s most common pitches and termination types, ensuring compatibility with a wide range of devices.

Feature Category Jiatel Specifications Key Advantage to Engineers

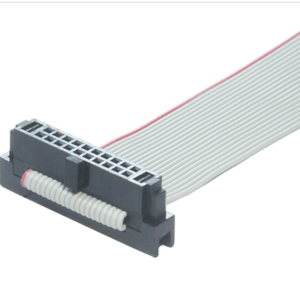

Pitch Options 0.635mm, 1.0mm, 1.27mm, 2.00mm, 2.54mm. Versatility: Wide range of pitches to suit diverse application needs.
Profile Design Exceptionally low-profile designs (as low as 5.08mm height). Space Saving: Allows flexible installation in extremely tight spaces.
Terminations IDC Socket, IDC Plug, FD, XH, PH Housing, and Open Ends. Flexibility: Supports simple board-to-board connections or complex housing integration.

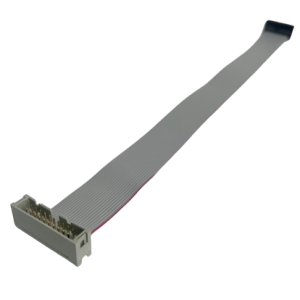

Header Mating Mating shrouded headers, ejector terminal strips, and locking latches. Reliability: Secure, reliable connections suitable for rugged applications.

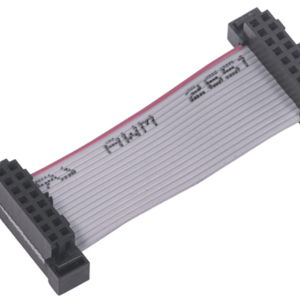

Cable Specs UL2651 standards; AWG28 or AWG30; Custom lengths and pin counts. Compliance & Customization: UL-certified materials with support for custom pinouts.

Uncompromising Quality and Service Promise

We tailor each assembly to your specific needs, ensuring high reliability and performance.

Quality and Compliance

  • Testing: We perform Open and Short circuit testing for each piece before delivery.
  • Materials: All assemblies are manufactured using UL-certified cables and strictly adhere to ROHS compliance.
  • Durability: Optional strain relief is available for enhanced durability and cable longevity.

Speed and Support

  • Samples: Sample service takes 5 to 8 days.
  • Production: Production lead time is typically 2 weeks.
  • Warranty: We offer a 2 years quality guarantee.
  • Engineering Confirmation: Before making the IDC row, our engineering team carefully checks the requirements for the direction of the bumps with the customer and sends drawings for final confirmation.

Whether you need a simple flat ribbon for board-to-board connections or a custom cable assembly with specific pinouts and strain relief, our engineering team can help tailor the ideal solution for your project.

Contact our sales or technical team today to discuss your custom configuration.
