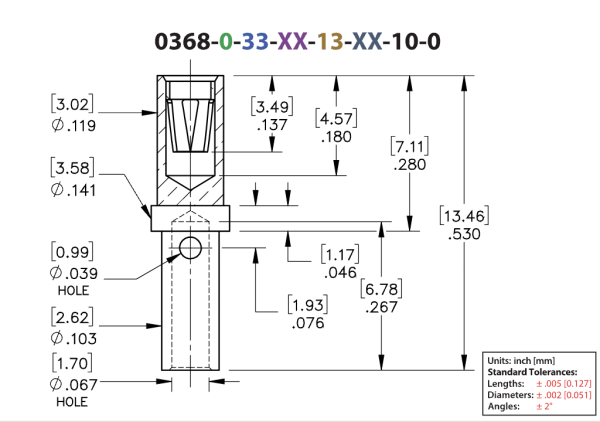

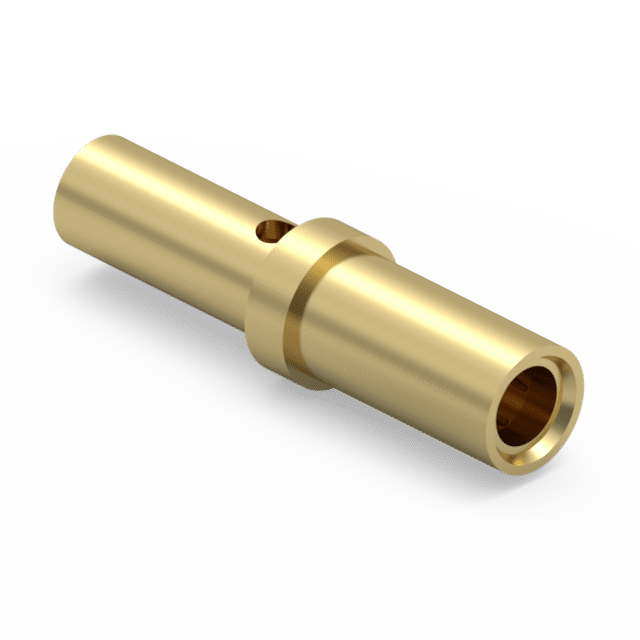

Description: 0368-0-33-15-13-14-10-0 Wire Termination Receptacle – Crimp Type Accepts .048″-.064″ (1,219-1,626mm) diameter leads.
|
Wire Termination:Crimp 16-20 AWG
Mounting Feature: Wire Mount
Product Family: Pin Receptacle
Packaging: Packaged in Bulk
RoHS : Yes
Product Lifecycle : Active
Materials
Shell Material : Brass Alloy
Shell Plating : 10 μ” Gold over Nickel
Contact Plating : 10 μ” Gold over Nickel |
Technical Specs
Mechanical life (Durability) : 1,000 Cycles Minimum Operating Temperature Range : -55/+125° C
Current Rating : 11.2A @ 10°C Temperature Rise
Contact Resistance : 10 mΩ Max
Shock : No Elect. Discontinuity > 1μs @ 50g
Vibration : No Elect. Discontinuity > 1μs @ 10-2000HZ, 20 G |
