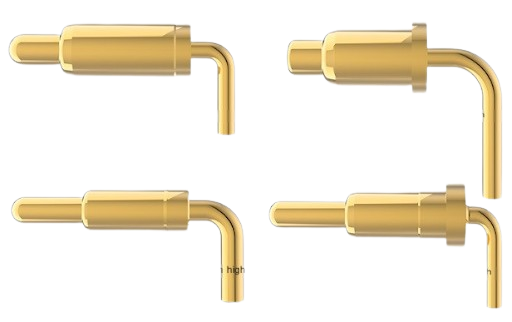

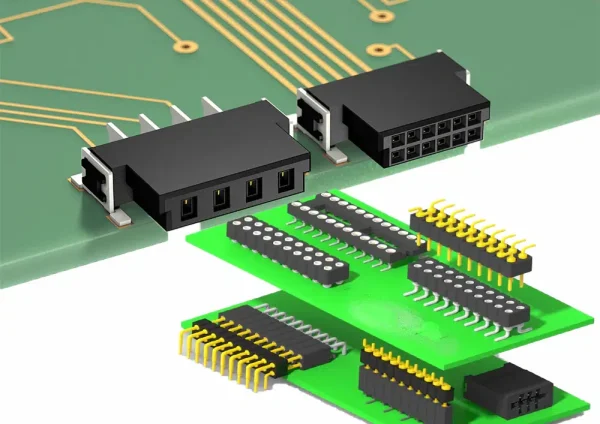

Precision Right Angle Pogo Pins: Lateral Mating & Z-Axis Optimization
We engineered our surface-mount (SMT) right angle pogo pins to provide lateral, horizontal connections for low-profile PCB layouts. Operating as strict 1:1 drop-in alternatives for legacy Keystone and Mill-Max connectors, these right-angle spring-loaded pins allow hardware designers to shift the mating axis by 90 degrees. This immediately reduces Z-axis spatial constraints while maintaining absolute signal integrity under lateral mechanical shock.
Internal Slanted-Piston Architecture
Standard vertical pins frequently suffer from micro-interruptions under lateral vibration. To counter this, Jiatel’s right angle series utilizes a precision slanted-piston structure and an inverted barrel design. This internal geometry ensures that the vertical spring force is smoothly translated into consistent horizontal contact pressure. Our test data shows this structure locks contact resistance between 8.3mΩ and 10.2mΩ, far exceeding the IPC standard baseline recommendation of ≤20mΩ.
Mechanical Stress Management: Right Angle vs. Vertical Alignment
Selecting a lateral connection axis is a mechanical stress management decision for robust enclosures, directly impacting RMA rates and lifecycle stability.
| Engineering Feature | Right Angle Pogo Pin | Straight (Vertical) Pogo Pin |
|---|---|---|
| Primary Mating Direction | Horizontal / Side-Entry | Vertical / Top-Down |
| Z-Axis Height Envelope | Minimal (Engineered for Slim IDs) | Higher (Limited by plunger length) |
| Mechanical Stability | High (Absorbs lateral shock paths) | Medium (Prone to axial tilt under lateral loads) |
| Resistance Stability | 42% More Stable | Standard Base |
| PCB Assembly Style | Edge-Mount / SMT | Center-Board / SMT / THM |
High-Value Target Applications
Consumer Electronics & Wearables
For ultra-thin smartwatch and medical wearable enclosures, reducing the Z-axis profile is mandatory. Right-angle pins shift the charging contacts to the extreme edge of the device, reclaiming internal chassis volume for expanded lithium-polymer cells or auxiliary sensor arrays.
Smart Wireless Locks & Security Terminals
Smart security hardware undergoes constant lateral mechanical vibration from door impacts. Vertical pins record critical “micro-interruptions” under such violent shock. Our right-angle structure’s ability to absorb lateral kinetic force ensures a continuous power loop for data synchronization and charging.
Industrial Automation & ATE Robotics
Within Automated Test Equipment (ATE) fixtures and robotic joints, connectors must tolerate imperfect mating cycles. Our right angle designs provide ±0.30mm of docking error absorption, cutting misconnection rates by 41% across high-speed automated testing environments.
Metallurgy, Plating, and Thermal Management
To eliminate atmospheric oxidation in handheld devices exposed to human sweat and coastal humidity, our manufacturing line strictly controls the metallurgical baseline:
- Plunger & Barrel: Precision-turned C3604 Brass finished with 3u” to 30u” Hard Gold (Au) Plating over a nickel underlayer.
- Mechanical Spring: Wound from SUS304 Stainless Steel or Beryllium Copper (Be-Cu) for maximum cyclic fatigue resistance.
- Salt Spray Durability: Verified to retain 98% performance integrity after 60 days of continuous saline immersion.
- Thermal Capacity: The extended 90-degree right-angle SMT base functions as a natural heat sink, permitting continuous power loads up to 10A per pin while locking the T-Rise below 30°C.
Standard Drawing Vault & Senior NPI Engineering Queue
Micro-clearance enclosures require absolute mechanical coplanarity to prevent terminal short-circuits or housing collisions. To enforce strict engineering version control and protect client PCBs from layout routing faults, Jiatel expressly forbids the distribution of uncalibrated 3D CAD files or open-source STEP models on our public servers.
To guarantee a 1:1 precise footprint match with your legacy BOM requirements, we mobilize our Senior NPI Engineering Team to distribute checked, mass-production-ready footprints directly from our secure vault. Route your spatial layout parameters to our queue:
SLA Delivery Commitment: Once your physical pad constraints and load parameters are logged into our queue, Jiatel guarantees that verified [Technical Datasheets] and [2D Footprint Specs] will be dispatched in official PDF format within 12 hours.
