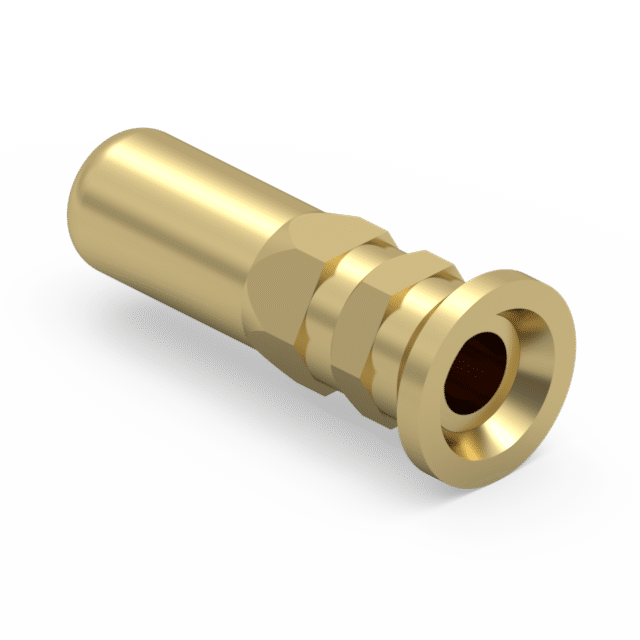

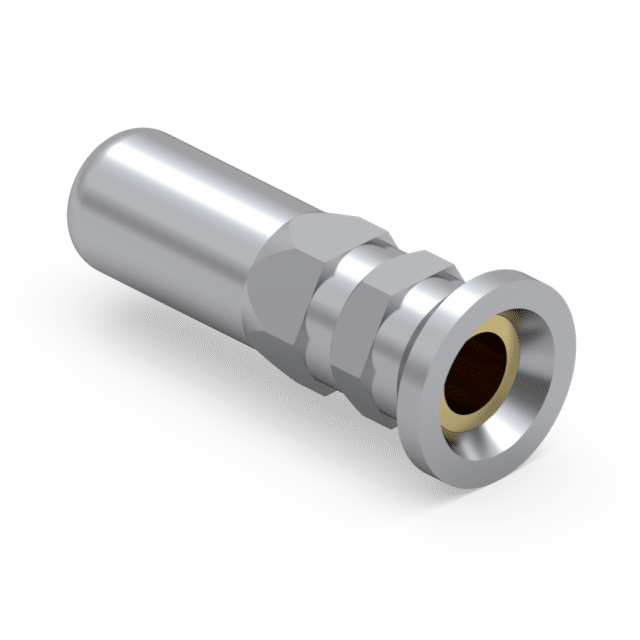

Description:Alternative of Mill-Max 0553 Press-Fit Receptacle for Plated Through Hole (PTH) Accepts 0.015″-0.022″ (0,381-0,559mm) diameter leads.
|
Mounting Feature: Pin Diameter Range: 0.015″-0.022″ (0,381- 0,559mm) Product Family:Pin Receptacle Packaging: Packaged in Bulk
MaterialsShell Material : Brass Alloy |
|
| Part No | Shell Plating | Conatact Plating | RoHS |
| 0553-1-15-01-11-02-10-0 | 01: – 200 – 300 μ” Tin/Lead over Nickel | 02: 100 – 200 μ” Tin/Lead over Nickel | No |
| 0553-1-15-01-11-27-10-0 | 01: – 200 – 300 μ” Tin/Lead over Nickel | 27: 30 μ” Gold over Nickel | No |
| 0553-1-15-01-21-02-10-0 | 01: – 200 – 300 μ” Tin/Lead over Nickel | 02: 100 – 200 μ” Tin/Lead over Nickel | No |
| 0553-1-15-01-21-27-10-0 | 01: – 200 – 300 μ” Tin/Lead over Nickel | 27: 30 μ” Gold over Nickel | No |
| 0553-1-15-15-11-14-10-0 | 15: – 10 μ” Gold over Nickel | 14: 10 μ” Gold over Nickel | Yes |
| 0553-1-15-15-11-27-10-0 | 15: – 10 μ” Gold over Nickel | 27: 30 μ” Gold over Nickel | Yes |
| 0553-1-15-15-21-14-10-0 | 15: – 10 μ” Gold over Nickel | 14: 10 μ” Gold over Nickel | Yes |
| 0553-1-15-15-21-27-10-0 | 15: – 10 μ” Gold over Nickel | 27: 30 μ” Gold over Nickel | Yes |
| 0553-1-15-80-11-14-10-0 | 80: – 200 – 300 μ” Tin (matte finish) over Nickel | 14: 10 μ” Gold over Nickel | Yes |
| 0553-1-15-80-11-27-10-0 | 80: – 200 – 300 μ” Tin (matte finish) over Nickel | 27: 30 μ” Gold over Nickel | Yes |
