Are Jiatel battery holders direct equivalents to Keystone?

Yes. We engineer our battery holders to be exact 1:1 footprint equivalents for standard components, including Keystone 1060, 1058, 1025, and 1054 series. This allows for direct drop-in replacement on existing PCB layouts.

What contact materials do you use for high-vibration environments?

We utilize Phosphor Bronze C5191 and customized Beryllium Copper (BeCu). Our engineering test data confirms these materials maintain constant contact pressure under 10G shock conditions, achieving an anti-fatigue lifespan of over 10,000 insertions and safely supporting up to 10A continuous current.

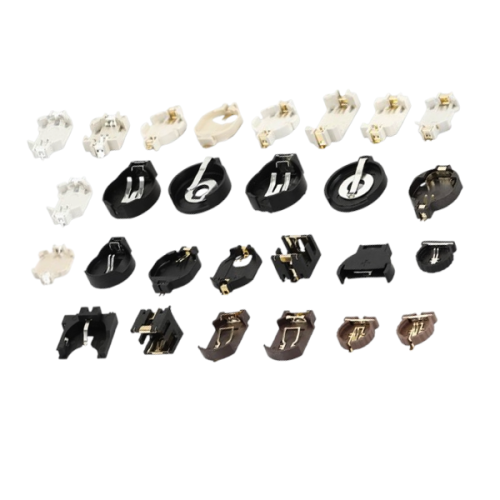

Battery Holder

Q: Do you provide customized battery contact geometry?

Yes. We operate a 15-Day Rapid Tooling program for non-standard battery sizes. Deployment of our Senior NPI Engineering Team is required. Request Engineering Support to review Technical Datasheets and 2D Footprint Specs within our strict 12-hour SLA.

Battery Holders & Contacts | Coin Cell & Cylindrical Enclosures

We engineer a comprehensive portfolio of PCB-mount battery holders and contacts designed for absolute power retention. Serving as direct 1:1 drop-in equivalents to standard Keystone and MPD components, our enclosures support a full spectrum of power architectures—from micro coin cells to high-drain cylindrical formats. To mitigate standard 16-week distributor bottlenecks, we execute a strict 3–5 week fast-track schedule for volume production.

Drop-in Cross-Reference Matrix

Battery Type	Mounting Style	Direct Drop-in Equivalent
CR2032 / CR2025	SMT / Through-Hole	Keystone 1060 / 1058
CR2450 / CR2477	SMT / PC Pin	Keystone 1025 / 1054
LR44 / LR41	Through-Hole	Keystone 103 / 101

Material Science & Mechanical Parameters

Electrical Integrity: We utilize Phosphor Bronze C5191 and custom Beryllium Copper (BeCu) to ensure near-zero contact resistance (≤30mΩ). Our customized BeCu contacts safely support up to 10A continuous current for high-drain applications.
Thermal Resilience (SMT): Surface-Mount variants are injection-molded from UL 94V-0 rated High-Temp LCP or PA46, maintaining absolute dimensional stability across 260°C peak reflow soldering profiles. Supplied in Tape & Reel (T&R) for automated assembly.
Vibration Resistance (THM): Through-Hole variants provide rigid mechanical anchoring. Our test data confirms the contact pressure prevents power micro-interruptions under 10G shock conditions, yielding an anti-fatigue spring life of >10,000 insertions.
