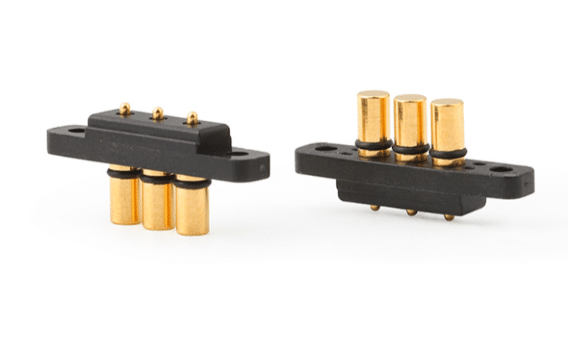

Precision Machined PCB Pins & Receptacles: The Foundation of High Reliability

The Jiatel Precision Machined Pin series is built for tough applications that need superior mechanical strength, electrical consistency, and long-term durability. Unlike traditional stamped and formed contacts, our machined pins are produced using high-precision CNC Swiss machinery. This crucially ensures tolerances as tight as $\pm 0.0127mm$ ($\pm 0.0005$ in.) for all critical connections.

Overall, we provide a direct, high-quality, and cost-competitive alternative to leading brands like Mill-Max and Preci-DIP. We achieve this by leveraging the superior performance inherent in the machining process.

I. Why Choose Machined Pins? Process vs. Performance

The manufacturing process is the single most critical factor determining a connector’s long-term reliability. Therefore, our precision machining technique offers clear, decisive advantages over standard stamping:

Feature	Precision Machined Pin	Standard Stamped Pin
Structural Integrity	Seamless Shell Construction. Machined from solid bar stock, creating a continuous, solid body.	Formed or folded from flat stock, often resulting in seams or weak points.
Reliability Barrier (Critical)	Solder Wicking Elimination: The seamless shell prevents solder wicking (capillary action) into the inner contact cavity, ensuring consistent, clean contact engagement.	Susceptible to solder wicking, which can compromise the internal contact spring and lead to failure.
Contact Quality	Helps guarantee a “Gas-Tight Connection”, preventing oxidation and fretting corrosion for stable, low-resistance performance over time.	Long-term connection quality depends heavily on mating pressure and environmental conditions.
NRE & Customization	Low Non-Recurring Engineering (NRE) costs and Fast Prototyping due to low tooling investment. Ideal for small-to-medium volume production.	High die/tooling costs and long lead times, suitable only for extremely high-volume mass production.

II. Best-in-Class Materials and Plating Options

Jiatel provides robust material combinations tailored for specific electrical, mechanical, and thermal challenges. For example, we offer these material options:

Component	Standard Material	High-Performance (HP) Material
Pin Body/Shell	Brass Alloy: Excellent machinability, conductivity, and cost-effectiveness.	Phosphor Bronze: High yield strength and enhanced springiness.
Internal Contact Clip (for Receptacles)	Beryllium Copper (BeCu): The industry standard for superior spring properties, high fatigue life, and outstanding conductivity.	Beryllium Nickel (BeNi): Used for extreme high-temperature environments (up to +225∘C), exhibiting little to no stress relaxation.
Surface Plating	Gold over Nickel ($1\mu$” to $10\mu$“): Provides minimal contact resistance, maximal durability, and superior corrosion resistance.	Tin over Nickel: Economical option for higher current-carrying capacity applications.

III. Key Technical Performance Metrics

Our components are built to meet the rigorous needs of mission-critical sectors, where failure is not an option. Consequently, our design and manufacturing standards strictly focus on:

Application Sector	Key Reliability Requirement	Jiatel Performance Assurance
Aerospace & Defense	Withstand high Shock ($50G$) and Vibration ($20G$).	Solid-body design and BeCu/BeNi clips ensure mechanical stability under extreme forces.
Industrial & Automotive	Wide temperature stability and resistance to harsh fluids.	Tested for extended temperature ranges (e.g., −55∘C to +125∘C).
Medical Devices	Low, consistent contact resistance for reliable signal integrity.	Guaranteed long-term Gas-Tight Interface for stable, low-loss connections.
Test & Burn-in	High insertion/withdrawal cycles and precision alignment.	Dimensional repeatability to $\pm 0.0127mm$ for reliable jig and socket integration.

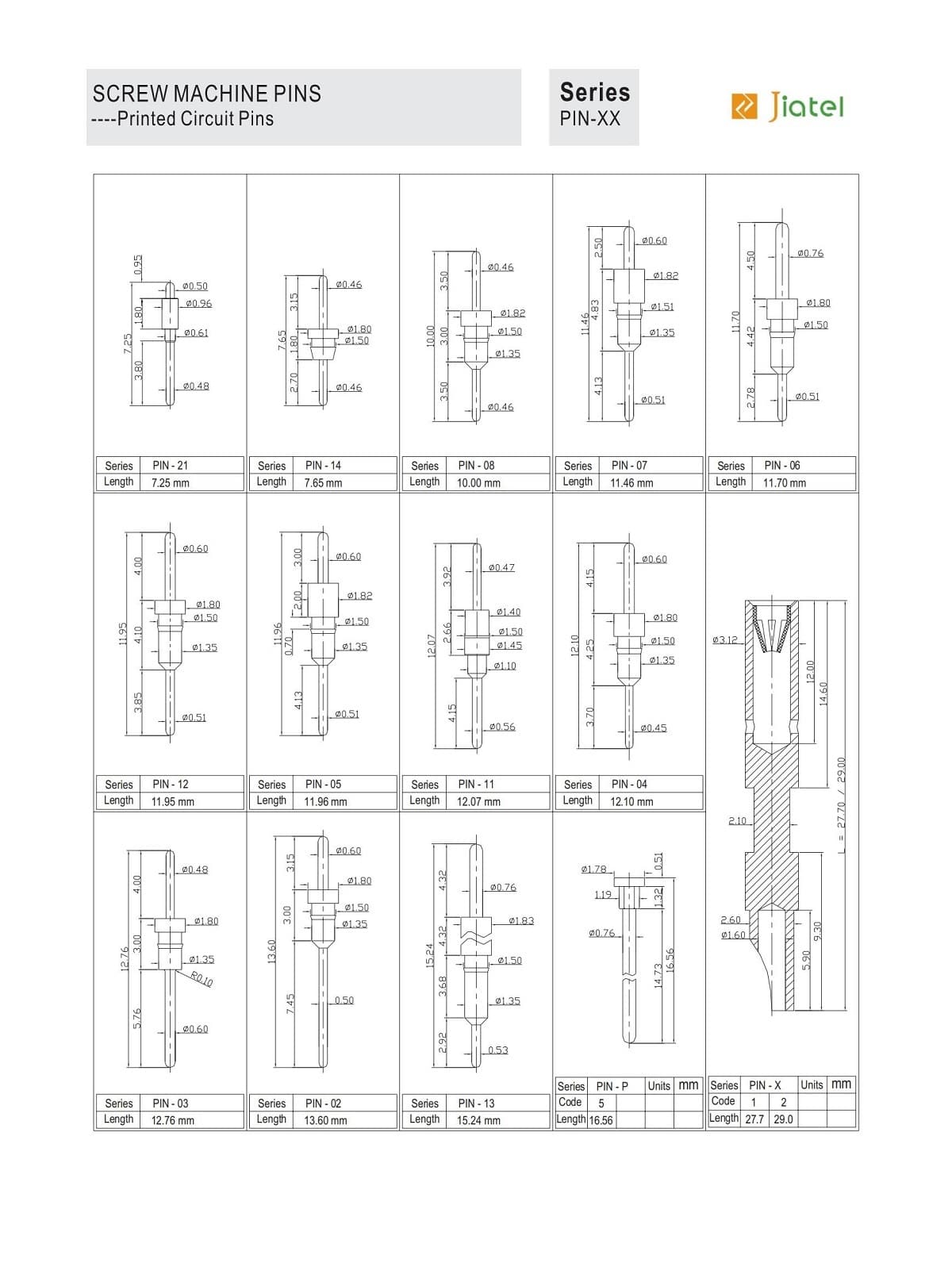

IV. Geometries and Advanced Mounting Features

We offer a full range of termination styles and advanced geometric features. These include:

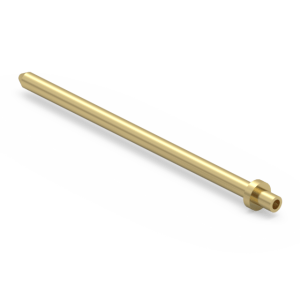

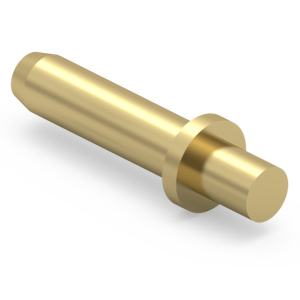

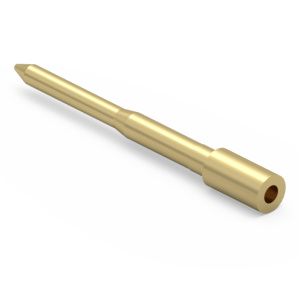

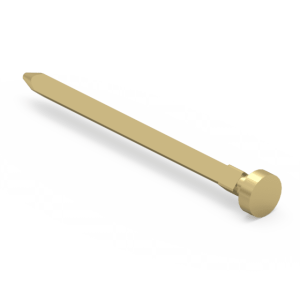

Standard Styles: Through-hole Double Head Pin, Solder Cup Pin, Swage Pin, and Nail Head Pin.

Advanced Press-Fit Technology

Furthermore, we offer advanced Press-Fit options for highly secure, solderless PCB mounting. We precision-machine polygonal shapes (like Hex or Square) onto the pin barrel. This process creates a stress-relieved press-fit zone. Ultimately, this maximizes retention force while actively preventing PCB delamination.

Custom Engineering & Rapid Prototyping

Finally, you can utilize the flexibility of our Swiss screw machining platform for your unique needs. Specifically, our customization process offers two key benefits:

1. Low Barrier to Entry: Start your custom project with minimal NRE (Non-Recurring Engineering) costs. Because of this, R&D is much more affordable and faster.
2. Tailored Specifications: You can easily customize pin diameter, length, head features, and plating thickness to meet your specific application needs.

Contact our sales experts today to discuss your exact specifications and start your custom project with a rapid prototype run!
