1107 Solder Cup Terminal Pin

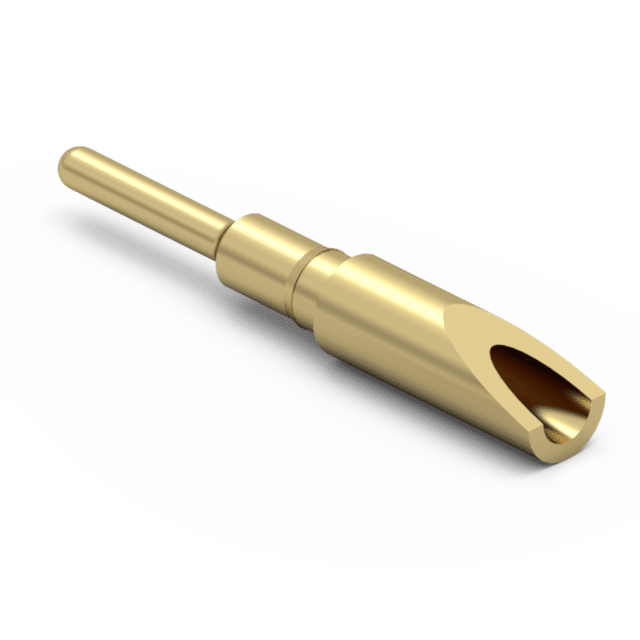

1107 Solder Cup Terminal Pin

Market Alert: Facing rising raw material costs? Our engineers can help you optimize your plating thickness (from 1u" to high-end 10u") to meet both performance and budget.

Read Guide: A Comprehensive Analysis of Gold Plating →
Download Technical Datasheet

Description: Alternative of Mill-Max 1107 Solder Cup Terminal Pin

Wire Termination:Soldercup up to 20 AWG
Mounting Feature:Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:  0.057″ (1,448mm)
Tail Type:  Soldertail
Tail Diameter: 0.030″ (0,762mm)
Alternate Mounting: Through-Hole Soldertail Mount
Alternate Mounting Hole:  .034″ (0,864mm)
Product Family:Printed Circuit Board (PCB) Pin

Packaging: Packaged in Bulk
RoHS : Yes
Product Lifecycle : Active

Materials

Shell Material : Brass Alloy
Shell Plating : 10 μ” Gold over Nickel / 200Tin (matte finish) over Nickel

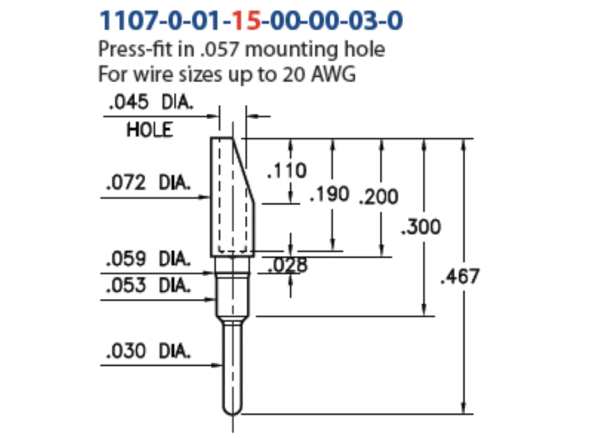

1107-Solder-Cup-Terminal-Pin-draw



Technical Specs

Operating Temperature Range : – 55/+125° C
Current Rating : Application Specific
