In complex electronics and device manufacturing, wiring is often a major challenge for efficiency and reliability. Have you ever been troubled by connecting two components with different interfaces or by routing wires in a small space? Traditional connection methods, such as direct soldering or using bulky adapters, are not only time-consuming but also increase the risk of failure.

Are you facing these pain points?

• Incompatible Connection Interfaces: Your two devices have different ports, and you can’t find a suitable conversion solution.
• Limited Wiring Space: Inside the device, there is not enough room for complex wiring or soldering.
• Low Assembly Efficiency: Traditional soldering or complicated connection processes extend production time and increase labor costs.
• Connection Reliability Risks: Fragile solder joints and loose adapters can lead to unstable connections or even device failures during use.

Our Solution: Harness the Power of Pigtail Connectors for Efficient and Reliable Seamless Connections

We understand that a simple and reliable connection solution can bring a revolutionary change to your project. We offer a range of high-quality Pigtail Connector products. They are more than just a short cable with a connector; they are the ultimate solution to all your wiring and connection pain points. Pigtail connectors simplify complex connections to a plug-and-play process, making your wiring work efficient and reliable.

Q&A: Your Top Questions About Pigtail Connectors

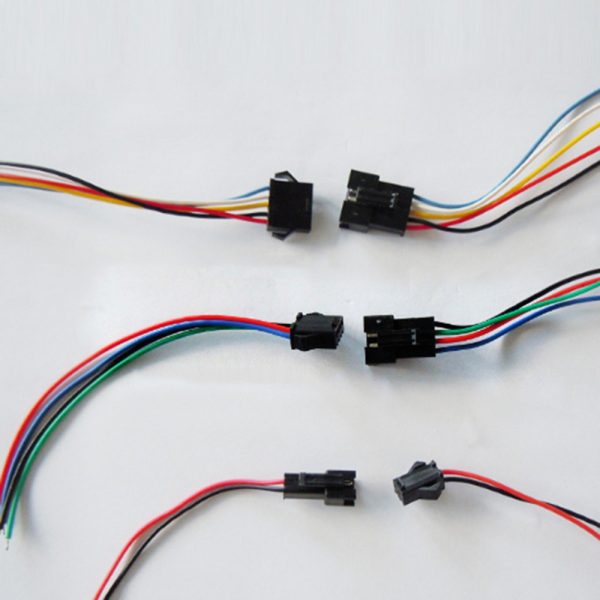

Q1: What is a Pigtail connector?

A1: A Pigtail connector, as its name suggests, is a short cable with a full connector interface on one end and a prepared wire segment on the other. It acts like a “little braid,” easily plugging into a device’s port, with its exposed wire segments then able to be flexibly connected to other devices or components.

Q2: Why are Pigtail connectors better than direct soldering or adapters?

A2:

• Higher Efficiency: Pigtail connectors support quick plugging, which greatly simplifies the assembly process. This significantly boosts efficiency, especially for repetitive connections or on a production line.
• Better Reliability: Compared to unstable solder joints, factory-made Pigtail connectors offer stronger mechanical stability and electrical connection reliability.
• Greater Flexibility: They can easily connect devices with different interfaces and serve as cable extensions. This perfectly solves space and compatibility issues.

Q3: How should we choose the right Pigtail connector?

A3: When choosing, you need to consider these factors:

• Size and Pitch: Make sure the connector size (e.g., 2.54mm, 3.5mm) matches your device’s port.
• Male/Female Gender: Choose a male or female connector based on the devices you need to connect.
• Wire Type: Select the right wire based on the signal type (e.g., audio, video) and current requirements.
• Compatibility: Ensure it is fully compatible with the devices and components you are connecting.

Quick Selection Guide: Jiatel Popular Pigtail Connector Series

As a professional connector manufacturer, Jiatel provides a wide range of pigtail solutions compatible with global brands. Check our core series below:

Series Type | Pitch Options | Compatible Standards | Key Applications

1. Wire-to-Board Pigtails | 1.0, 1.25, 2.0, 2.54mm | JST SH/PH/XH, Molex PicoBlade | PCB Internal Wiring, Sensors

2. Waterproof Pigtails | M8, M12, Custom Circular | IP67 / IP68 Rated | Outdoor LED, Industrial Equipment

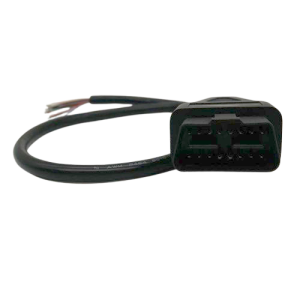

3. OBD2 Pigtails | Standard 16-Pin | SAE J1962 (Standard OBD2) | Diagnostics, Telematics, Tracking

4. Custom Power Pigtails | DC Jack, XT60, SAE | High Current / Voltage Custom | Battery Packs, Power Adapters

Looking for custom AWG or specific lengths? Jiatel offers full customization services. Get a Free Quote & Technical Drawing Now!

How We Ensure the Superior Performance of Your Pigtail Connectors

As professional connector manufacturers, we turn every technical detail into your core advantage.

1. Precision Manufacturing Ensures a Perfect Match

• Advantage: We use high-precision manufacturing processes to ensure every Pigtail connector’s size and pitch strictly conform to standards. This guarantees a zero-error, perfect match between the connector and your device’s port. It eliminates connection issues caused by incorrect sizing from the source.

2. Optimal Wire Selection Guarantees Connection Reliability

• Advantage: We choose high-quality wires for different application needs. Whether for transmitting high-speed signals or carrying high currents, our wires have excellent conductivity and durability. This fundamentally guarantees connection stability and long-term reliability.

3. Flexible Customization Meets Diverse Needs

• Advantage: We offer highly customized Pigtail connector solutions. Whether you need a specific wire length, color coding, or a unique connector type, we can design and produce it based on your exact project needs. This flexibility ensures your project finds the best connection solution for any application scenario.

4. Strict Quality Control Guarantees Product Consistency

• Advantage: Each batch of Pigtail connectors undergoes strict quality control and electrical testing before leaving the factory. This includes insertion/extraction force tests, continuity tests, and insulation tests. We ensure every product has a high degree of consistency and reliability, giving you peace of mind during mass production.

Conclusion: Choose Us for an Efficient and Reliable Connection Future

Pigtail connectors are the ideal choice for simplifying complex wiring and boosting engineering efficiency. We are more than just a connector supplier; we are your professional partner in solving connection challenges. We are dedicated to providing you with high-quality, high-performance Pigtail connectors, helping you improve product quality and production efficiency.

Choose us, and choose a professional manufacturer who can empower your innovative designs and elevate your production efficiency. Let’s work together to push the boundaries of connection!

For even more compact board-to-board connections, check out our Pogo Pin Solutions.

Supported Connector Series: Our pigtail assemblies are compatible with JST SH 1.0mm, JST GH 1.25mm, JST PH 2.0mm, JST XH 2.54mm, Molex PicoBlade, and various waterproof M8/M12 circular connectors. We also support custom SAE J1962 OBD-II pigtails for automotive diagnostics.
